Party Tent Mega 8M Duo
Range
Mega Tents

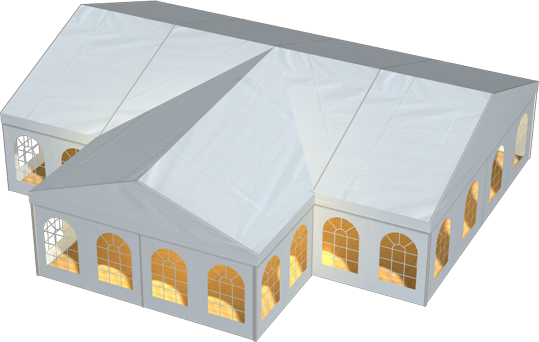

Tent image
Technical data
| Clear-span width | 800 cm |
| Side height | 229 cm |
| Ridge height | 374 cm |
| Roof pitch |
20° |
| Bay distance | 300 cm |
| Gable uprights | 1 gable upright (per end) |
| Longest component | 428 cm |
| Minimum tent length | As shown |
| Maximum tent length | No limit |
| Main profile | 81 mm x 48 mm x 3 mm (optional 94 mm x 48 mm x 3 mm ) |
| Eave / corner connection | Internal eave insert |
| Max. allowed wind speed to DIN | 80 km/h |
| Wind Load | 0.3 kN/m2 |
| Extension / lean-to options | 1/2 hexagonal at gable end With Mega tents 6m and 8m |
| Flooring options | Woodenfloor with timber or steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards Compactfloor |
| Cover | R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2 |
| Note | All Mega variations fit 6m, 8m and 9m standard party tents |

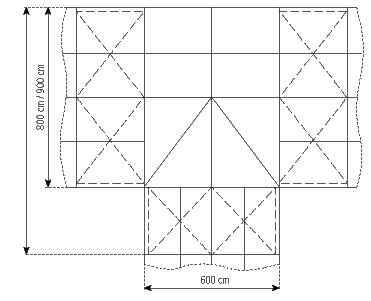

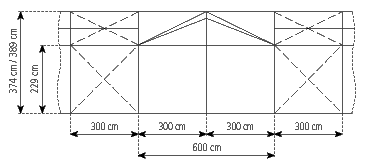

Tent top and side view image
